Rhino® Pitcher Rinser - 600mm - Spinjet

Product Id : RHPR600-S

MSRP $369.95

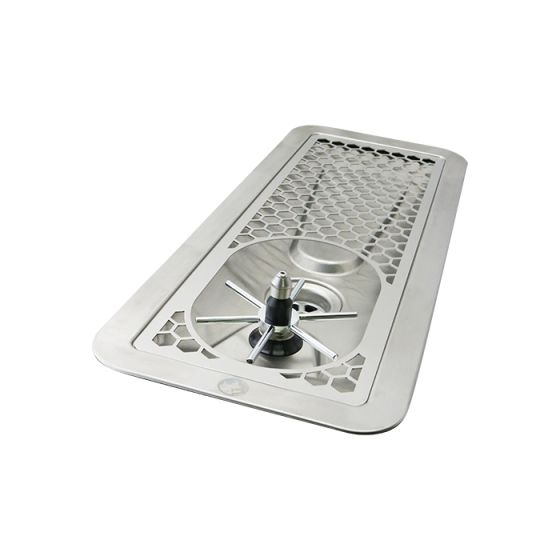

Rhino® Pitcher Rinser - 600mm - Spinjet

Product Id: RHPR600-S

MSRP $369.95

Rhino Coffee Gear Pitcher Rinser 600mm - Spinjet

  • Description +-

    The Rhino Coffee Gear RHPR600-S has been designed to fit in the bench of cafes, restaurants, coffee bars, and juice bars. This vessel rinser features a new honeycomb drain tray and a new Actuator Star design, which both help to prevent liquid build-up. It also includes a Rhino Spinjet Valve which sprays and spins at the same time for an effective clean. Sitting at 600mm in length, the RHPR600-S fits multiple milk pitchers comfortably, making it perfect for all busy hospitality environments.

    Features:

    EFFECTIVE MECHANICAL CLEANING- The Spinjet Valve sprays and spins at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, and milk and other residues that can often be difficult to clean.

    SUPERIOR DRAINAGE - The honeycomb grate design minimises the surface area of the drain tray, reducing static build-up of liquids and making cleaning easy. The low profile body is optimally sloped and angled to ensure effective removal of liquids, reducing common odours caused from static waste. A large drain outlet and wide grate-free opening near the drain creates a convenient location to quickly discard larger volumes of liquid.

    LARGER VESSEL OPTIONS - The Actuator Star diameter allows both small and larger vessels to be cleaned easily. An ideal add-on for blender jugs and other larger vessels is the Blender Adapter Kit. This kit includes an extension rod and a larger actuator to suit plungers, milkshake cups, and popular blender jugs such as Blendtec and Vitamix.

    NSF Certified - All Rhino Milk Pitcher Rinsers are NSF Certified.

    Specifications:

    - Dimensions (approx): 238mm (W) x 600mm (L) x 85mm (9.38 x 23.6 x 3.35 in) (Depth from drain elbow to top of bench.)
    - Materials: Stainless Steel
    - Drain Hose: 25mm/1" size (not included)

    Depth Requirements:

    The Rhino rinsers are 40mm deep, however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.

    Installation Notes:
    - Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into bench top surfaces. Rhino Coffee Gear does not take responsibility for installation cut out error and provides the sizes and dimensions as a layout guide only.
    - It is recommended that a Pressure Limiting Valve (PLV) is used when installing on mains water line.

    Click here to view the cleaning guide.

    Click here to view the Exploded Parts Diagram.

    Click here to view the relevant Spec Sheet.

    Click here to view the Installation Instructions.

    Click here to view the Installation Template.

    How to connect the drain tray and hoses.



    How to fix the o-ring to the activation piston.
